Traffic H1Horizontal barrier. For demanding security tasks.

High functionality for numerous special applications Patented folding boom for safety at indoor crossings with differing lane widths Low power consumption for economical operation Optimum accessibility for particularly simple maintenance Form based on the prizewinning design of the Access barriers. This parking lot swing gate is not only used for blocking access to tunnels and lanes.



Traffic Swing Gate

# 1

# 1



Traffic Swing Gate

Horizontal barrier

  • High functionality for numerous special applications

  • Patented folding boom for safety at indoor crossings with differing lane widths

  • Low power consumption for economical operation

  • Optimum accessibility for particularly simple maintenance

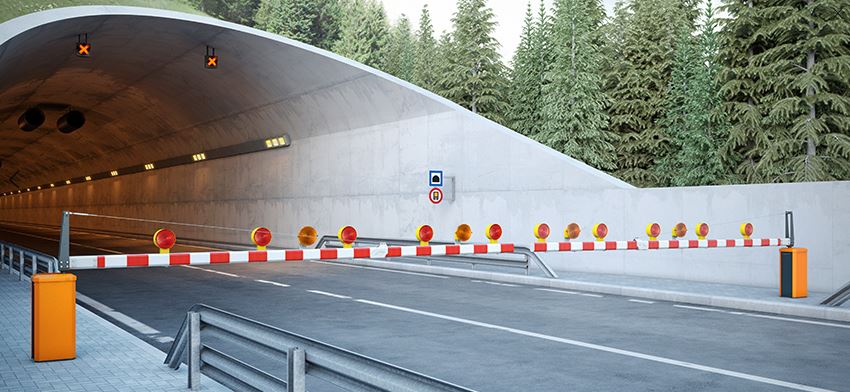

As horizontal barriers, the Traffic H1 is a specialist in vehicle and pedestrian management. This parking lot swing gate is not only used for blocking access to tunnels and lanes. Our traffic barrier gate is therefore not only the optimal solution for road traffic, but also for protecting material flows in production plants. With its patented folding boom, the Traffic H1 can therefore even block crossings where the ratio of lane widths in the longitudinal and transverse directions is greater than 2:1.

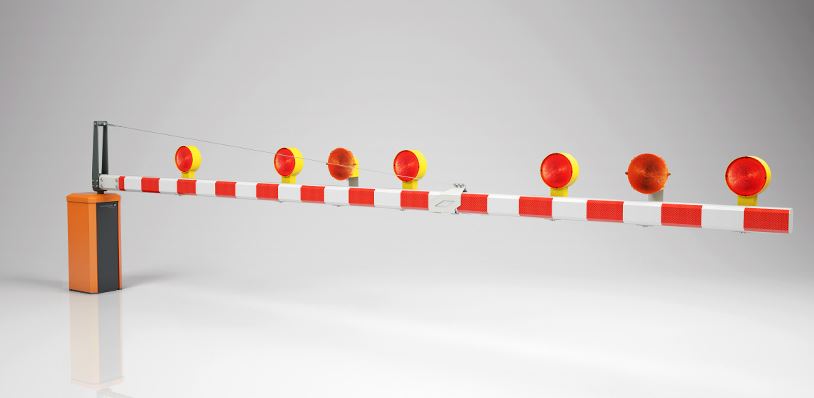

Traffic H1 Swing Gate

Horizontal barrier

From  $ 4,871.00

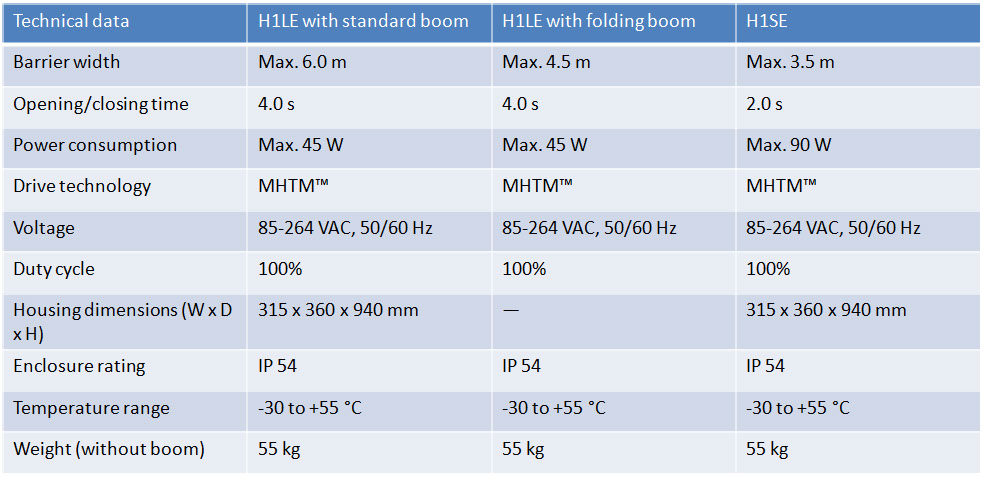

Data Sheet



MODEL

Opening Width (D)

Speed

List Price

TRAFFIC H1SE-SC01000

TRAFFIC H1SE-SC01200

TRAFFIC H1LE-SC01000

TRAFFIC H1LE-SC01200

TRAFFIC H1LE-SC01500*

TRAFFIC H1LE-SC02000*

10Ft

12Ft

10Ft

12Ft

15Ft

20Ft

2s

2s

2s

4s

4s

4s

$ 4,968.00

$ 4,984.00

$ 5,177.00

$ 5,192.00

$ 5,239.00

$ 5,286.00

*Traffic barriers with arms over 14 feet must use a cable support

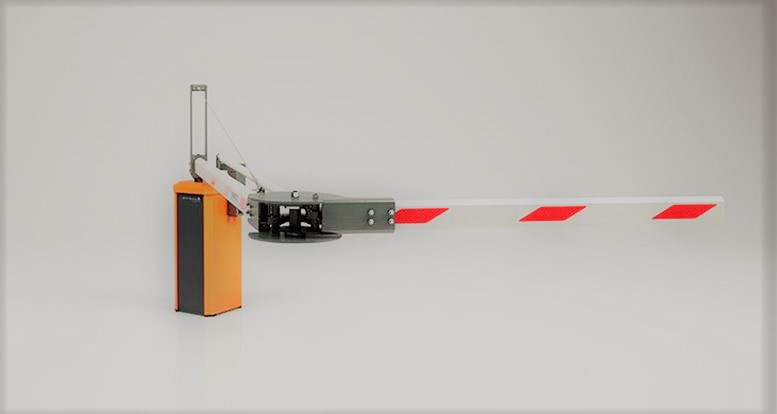

H1LE with Folding arm

Folding articulated barrier arm Available Upon Request

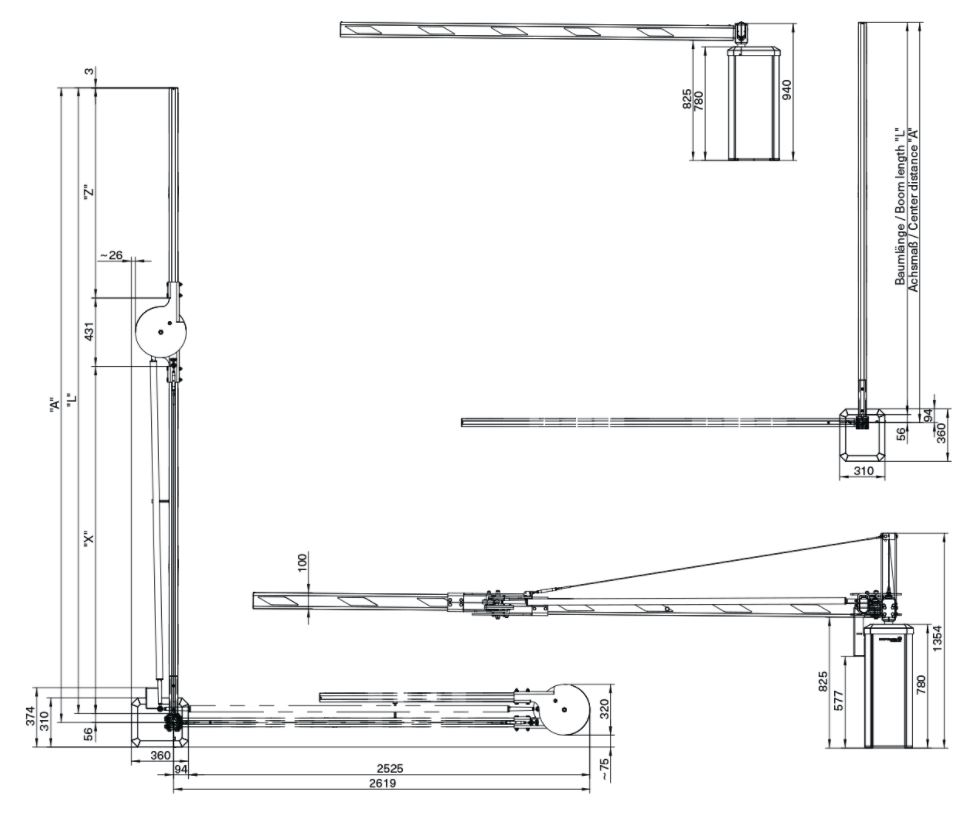

H1LE with folding boom, view from front and from above / H1SE and H1LE with standard boom, view from front and from above

Dimensional Drawings

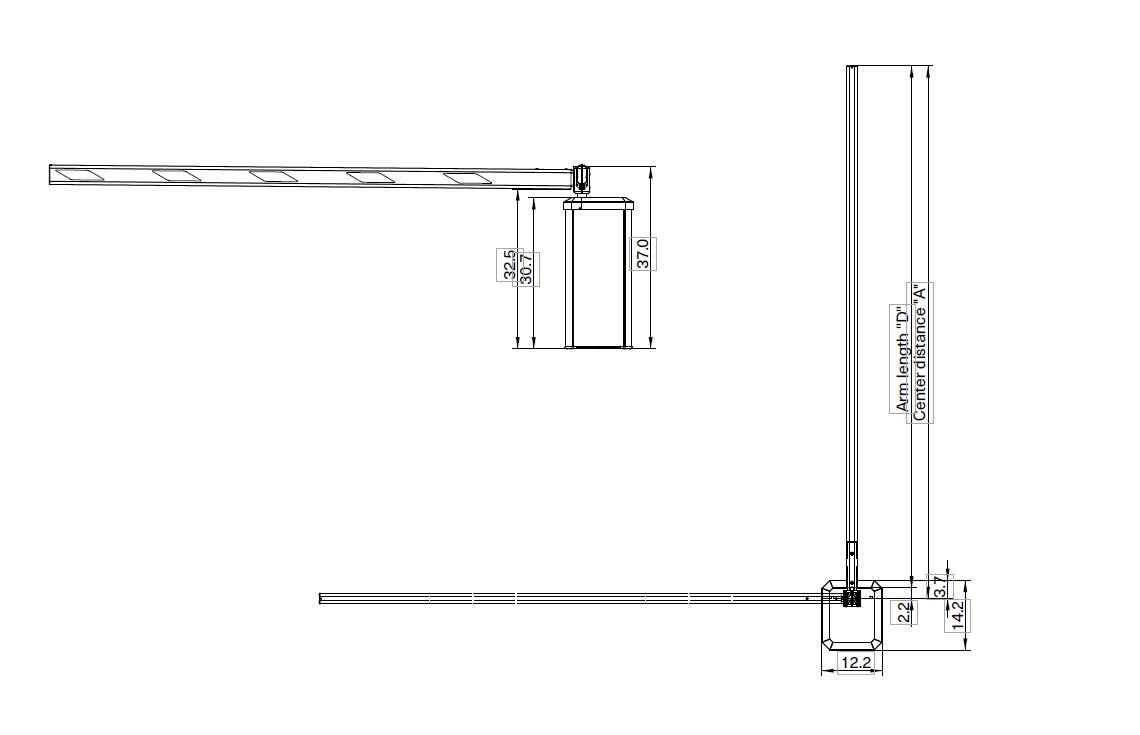

H1LE with Standard arm



Dimensional Drawings



Standard barrier color



Standard door color



Orange

(RAL 2000)

Black-Grey (Anthracite)(similar to RAL 7021)
