Welcome to
Turnstiles.us
The Beacon™ Series is our line of barrier-free pedestrian control devices. Using a non-restrictive method to control traffic flow, these “optical” units are ideally suited for office personnel entrances where the majority of the people enter using an ID card.
Optical turnstiles allow for rapid pedestrian advancement and barrier free ADA access, while preventing “tail-gating” by those without credentials.
This low profile unit has a stainless cabinet and is finished with a solid surface top to match any decor. It integrates with all standard access equipment. (The “sister unit” is the BE800-W featuring a wood cabinet.)
Match any interior environment with this unit's 304 stainless steel cabinet and designer, solid-surface top – available in your choice of color.
turnstiles Controlled access optical - BEACON SERIES
Our Beacon™ series optical turnstiles combine modern, optical sensing technology with classic cabinet designs in either wood or 304 brushed stainless steel. This line features both low and large profile units to fit any situation, and can integrate with all standard access control equipment.
Using a non-restrictive method to control traffic flow, Beacon™ series units are ideally suited for office personnel entrances where entrance requires an ID card. In addition, they allow for rapid pedestrian advancement and barrier-free ADA access while preventing "tailgating" by those without credentials. Optical lanes offer a flexible range of passage widths from 22" to 38".
Beacon Series LARGE PROFILE UNITS - BE800-X
# 1
# 1

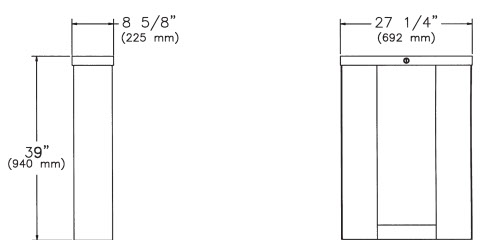

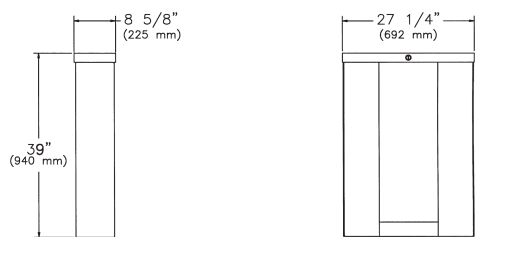

BE800-X Dimensions
HEIGHT
WIDTH
DEPTH
39"
27.25"
8.625"
Technical Features
Optical sensors provide for passage for up to 30 people per minute.
Powerful through-beam sensors exceed sensing distance to ensure proper functionality.
LED graphic arrays indicate direction status.
Lower section optical sensors prevent unauthorized "crawling" through lanes.
Configurable for controlled passage in one or both directions with free or no passage in the other via logic controller settings..
Configurable for controlled passage in one or both directions with free or no passage in the other via logic controller settings.
Alarm condition provides an audible tone, as well as a solid-state output for integration into other systems.
Passage widths are flexible from 22" to 38".
Beacon Series LARGE PROFILE UNITS - BE800-Z
# 2
# 2

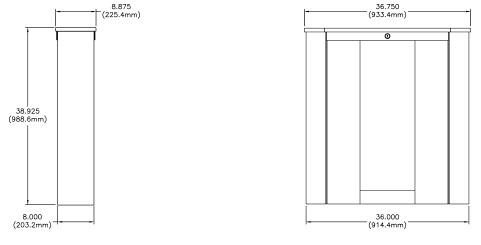

BE800-Z Dimensions
HEIGHT
WIDTH
DEPTH
38.925"
36.75"
8.875"
Technical Features
Optical sensors provide for passage for up to 30 people per minute.
Powerful through-beam sensors exceed sensing distance to ensure proper functionality.
LED graphic arrays indicate direction status.
Lower section optical sensors prevent unauthorized "crawling" through lanes.
Configurable for controlled passage in one or both directions with free or no passage in the other via logic controller settings..
Configurable for controlled passage in one or both directions with free or no passage in the other via logic controller settings.
Alarm condition provides an audible tone, as well as a solid-state output for integration into other systems.
Passage widths are flexible from 22" to 38".
Beacon Series LARGE PROFILE UNITS - BE800-R
# 3
# 3

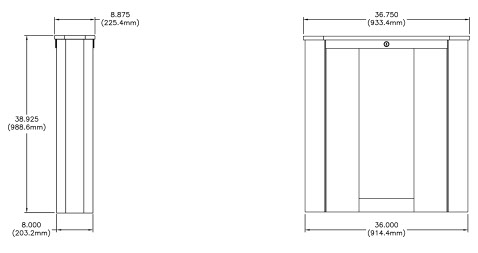

BE800-R Dimensions
HEIGHT
WIDTH
DEPTH
38.925"
36.75"
8.875"
Technical Features
Optical sensors provide for passage for up to 30 people per minute.
Powerful through-beam sensors exceed sensing distance to ensure proper functionality.
LED graphic arrays indicate direction status.
Lower section optical sensors prevent unauthorized "crawling" through lanes.
Configurable for controlled passage in one or both directions with free or no passage in the other via logic controller settings..
Configurable for controlled passage in one or both directions with free or no passage in the other via logic controller settings.
Alarm condition provides an audible tone, as well as a solid-state output for integration into other systems.
Passage widths are flexible from 22" to 38".
Our full-size optical turnstiles feature brushed 304 stainless cabinets with round (BE800-R) and trapezoid (BE800-Z) solid-surface tops, or a stainless rectangular top (BE800-X).
Beacon Series Low Profile - Barrier Free Optical Turnstile
# 4
# 4
BE800-S Series
Data Sheet
Match any interior environment with this unit's 304 stainless steel cabinet and designer, solid-surface top available in your choice of color.
BE800-S-P
BE800-S-H
BE800-S-S
From $ 5,824.00

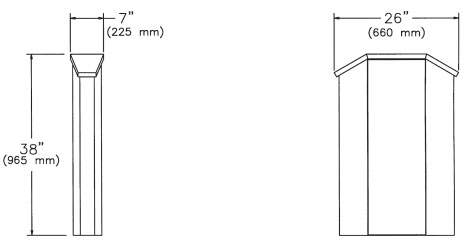

BE800-S & BE800-W
Dimensions
Dimensions
HEIGHT
WIDTH
DEPTH
38"
26"
7"
Our small profile Beacon™ series turnstiles feature stainless steel (BE800-S) or wood cabinets (BE800-W) and solid-surface angled tops.
Standard solid surface top choices
# 5
# 5
Autumn
Blue Jeans
Concrete
Crushed Almond
Flurries
Lake Michigan
Obsidian
Peach Freeze
Pewter
Walnut Toffee
Spanish Moss
Whole Wheat
Additional top selections, such as Corian® or wood can be quoted upon request.
Top selections are subject to Availability.
Wood Cabinetry Finish Options
# 6
# 6
Birch
Cherry
Maple
Oak
Walnut
White Wash
Standard cabinetry options for our BE800-W low profile unit are shown above, though we can create types to match any décor. If you have any issues with them or need additional information, please contact us.
