Welcome to

Turnstiles.us

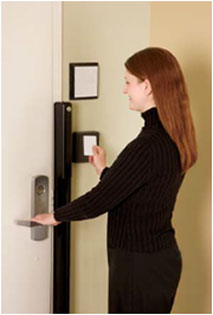

Tailgate detection, helps ensure that only one person enters a secure area per valid authorization.

The ES5200 Series Entry Sentry will utilize the building access control system to grant or deny access to the facility. This system will insure that only one (1) pedestrian enters a secured passageway for each valid card read.



The anti-tailgating system consists of two (2) components using active modulated proprietary sensing technology, mounted on either side of a doorway or passageway.

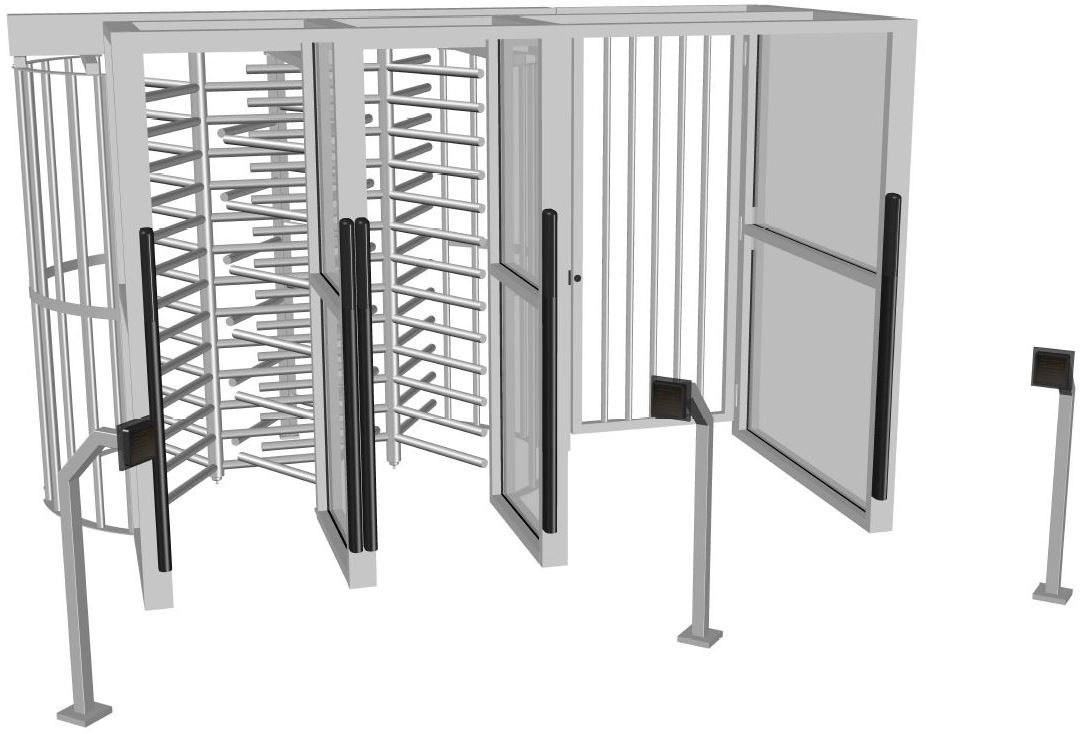

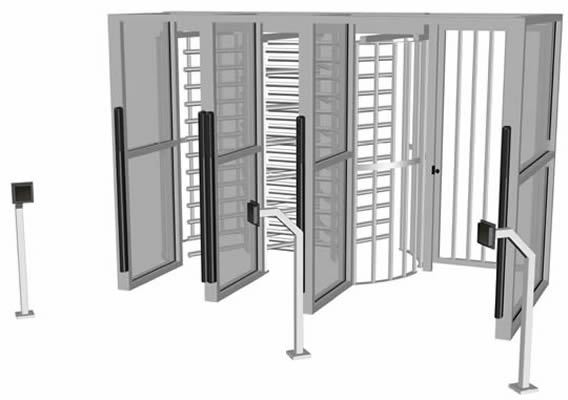

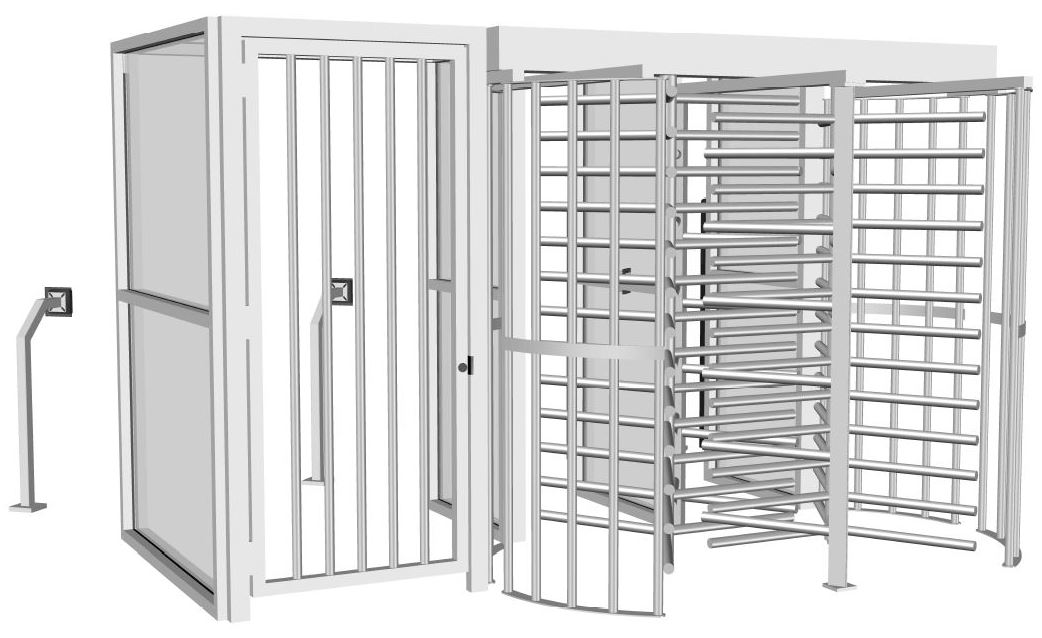

HS Single Turnstile - ADA Gate with Anti Tailgate

HS 430 - S - GV Detection System

# 1

# 1

HS 430 S GV Tailgate Detection System Kit



(2) HS 430- S- V With Electric Control Head and end Caps



(1) ADA Gate HS 336 with Mesh and Panic-bar



(3) Tailgate Entry Sentry System



(3) Pedestal for Card Reader



(4) Glass Aluminum Framed Hallways. 3' length



(1) Cable Package



(3) Card Reader (only entry)

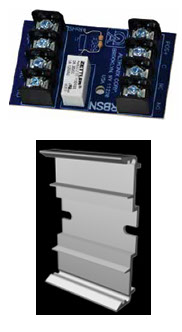

(3) Relay and Base



(1) KT- 400 Kit



(1) EntraPass Global Edition Workstation



Price: $ 49,225.00

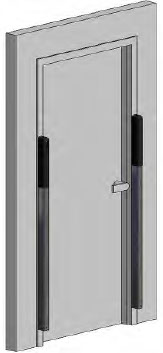

Entry Sentry Anti Tailgate

ES5200 Series Tailgate Detection System

# 2

# 2





Detection System



One Card

One Entry Access Control.



Control pedestrian traffic at any door Senses direction.



And pedestrian count Tailgating causes local and remote alarms.



ES5200 Series Tailgate Detection System

Data Sheet

Specifications



1: UNPACKING AND DISASSEMBLY (see detail drawing in Assembly section)

Remove the two assemblies from packaging. Receiver side has Key Switch and Indicator.



Remove three (3) 5/64” Allen Screws at upper, middle, and lower points on each assembly.



Remove the Upper Cover. Set Upper Cover aside.

NOTE - Unplug wiring from circuit board when removing the Receiver-side Upper Cover.



Remove the Lower Cover and set aside.



Remove the two 1/4” Hex Standoffs at the top and bottom of each electronics package, then slide package up and lift off of Mounting Plate.

Repeat for opposite assembly.

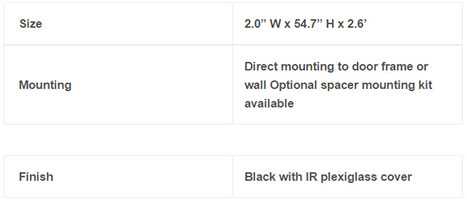

Mechanical Specifications

ES5200 Series Tailgate Detection System



1/4” Tailgate detection, helps ensure that only one person enters a secure area per valid authorization



• Compatible with all access control technology.



• Mounts easily on standard door frames and hallway walls.



• Blends in with architectural styling.



• Field configurable for card-in/card-out or card-in/free-exit operation.



• High throughput (30-45 people per minute) dependent on the access control system.



• Integrated Lock Control Relay helps provide faster throughput.



• Integrated door prop alarm.



• Encourages employees to maintain access control procedures.



 The ES5200 Series Entry Sentry will utilize the building access control system to grant or deny access to the facility.

Price: $ 5,288.00

Metal Detection Systems

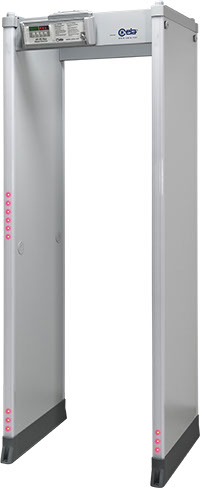

HI-PE Plus Enhanced Walk-Through Multi-Zone Metal Detector

# 3

# 3





Chip Card System:



The system allows the Head of Security to set the Security Level quickly, reliably and without having to program the device in any way.

Metal Detection Systems



Data Sheet

Features

Capability to detect the full range of metal weapon threats even within body cavities.



Met-Identity technology for Identification of Threat Composition. The most advanced Security Standards require detection of all ferrous and non-ferrous metal weapons and of those constructed in special non-magnetic alloys. The HI-PE Plus detects firearms and knives of this type, even when they are hidden within body cavities, and accurately indicate the position of the threat, its intensity and its prevalent composition. Inspection personnel thereby acquire thorough knowledge of the metal item and can act, according to procedures, with maximum effectiveness and security.



60 pinpointing zones with high resolution & precision: 20 Vertical; 3 Lateral

Benefits

Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow. The transit volume magnetic scanning system, invented by CEIA and applied since production of the first zonal Metal Detectors in 1986, allows state-of-the-art detection and discrimination results.


The HI-PE Plus has a very low nuisance alarm rate even at the strictest Security Levels requested today, and therefore allows high transit flow rates and the minimum need for intervention by inspection personnel.

Price:  $ 8,295.00

HI-PE Plus

Enhanced Walk-Through Multi-Zone Metal Detector

Unique Alarm Signaling

4 Multi-Zone Display Bars, each programmable as entry Stop/Go and/or local alarm indication.



High visibility of the control unit and the zone indication independent from the operator position and the installation environment. Accurate signaling is essential for best operation and flow management. The HI-PE Plus provides the user with fully-programmable signaling. Both entry-points can indicate with a high level of accuracy, even simultaneously, the vertical and lateral areas of transit of the threats detected, and can also be configured as ’traffic lights’ to control transits through the detector.



Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds.





10 Acoustic Intensity Levels. A complete acoustic alarm system allows personalization of the alarm tones and intensities, with a wide choice of continuous, pulsed and special tones at different levels of intensity. The wide volume control dynamic allows operation even in very noisy environments.



High Precision Transit Counter: In-Bound Transits; Out-Bound Transits; Alarm Rate; Automatic Compensation for repeated transits of the same person. The Metal Detector provides an automatic count of the people passing through the access point in both directions and the related nuisance alarm percentage.

OPERATION MANUAL
